Python for Excel

Overview

Install the add-in, then create an Excel LAMBDA function from a Python function in two easy steps as follows:

def inches_to_mm(inches):
    """ Converts inches to millimeters. """
    return inches * 25.4

=LAMBDA(inches, BOARDFLARE.EXEC("workbook-settings:inches_to_mm", inches))

=INCHES_TO_MM(inches)

Let’s use another example to explain the process in more detail. Suppose you have the following Python function:

def hello(first, last):
    """ Returns a greeting. """
    greeting = f"Hello {first, last}!"
    return greeting

When you save this code, the Python function name hello and arguments first, last are parsed to create a LAMBDA function =LAMBDA(first, last, BOARDFLARE.EXEC("workbook-settings:hello", first, last)) which is saved to the name manager with the name HELLO. The Python code is saved to the workbook settings so it is embedded in the workbook. The first line of the Python function docstring is also added as a comment to the name manager to provide a description users can see when they use the function.

Each time the function is invoked, BOARDFLARE.EXEC loads the code from the workbook settings and runs it with the arguments. Since the code and LAMBDA are both stored in the workbook, anyone who uses the workbook can use the function. If they don’t have the add-in installed, Excel will automatically prompt them to do so.

BOARDFLARE.EXEC is currently intended for internal use only. If you wish to use a lower-level API, you can use the BOARDFLARE.RUNPY function directly, which is similar. See the BOARDFLARE.RUNPY section for more details.

Features

Some key features of the add-in are as follows:

✅ Use Python in formulas and LAMBDA functions.
🆓 Free add-in, no Office 365 license required.
🌐 Works in Excel for web as well as desktop.
☁️ Runtime has network access for API calls (needs CORS).
📦 Import custom packages (pure Python only).
🔒 Code is stored in your workbook and runs locally.
🚀 No user sign-in is required to run functions.

Editor Tab

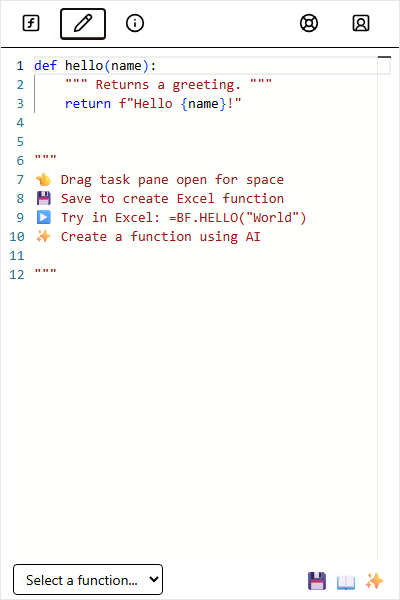

The add-in Editor tab contains a code editor (Monaco, same as VS Code) that allows you to write Python code with syntax highlighting. When you save your code a LAMBDA function is created from your Python code. You can also run test cases to verify your function. If you drag the task pane open for more room, you will have the following view:

The bottom bar of the editor tab contains the following controls:

• Select a function...: Enables you to load a different function in the workbook into the editor. Make sure you save any changes before switching functions.
• Reset: Returns the editor to its initial default function.
• Test: Runs the test cases defined in the Python code. You will be taken to the Output tab to view the results.
• Save: Saves the code in the editor to workbook settings and create a LAMBDA function. If an existing function of the same name exists, it will be updated. There is NO AUTO-SAVE.

Functions Tab

The Functions tab displays a list of all the Python functions saved in the workbook. Clicking edit 🖊️ on a function returns you to the editor tab with that function loaded, the same as if you loaded it from the functions dropdown in the code editor. You can run tests on a function by clicking the ▶️ icon. You can also delete functions from the workbook by clicking ❌.

You can load a Jupyter notebook of example functions into your workbook by selecting the notebook with the functions you want to import, then clicking Import Noteboook Functions. You can then edit these functions as you wish. Just make sure to remember to rename them so they are saved as a new function. Otherwise they will be overwritten if you import the notebook again because they have the same name. If there is a specific type of example function you would like to see, please let us know.

You may also import functions from a notebook that is stored in a GitHub Gist such as this example. Paste the URL of the Gist, e.g. https://gist.github.com/bolleman/c2d1e1bf47680f8e5d699a2ae1be8c82 into the Enter GitHub Gist URL form and click the Add button. The notebook will now be available in the Select a notebook... dropdown to import into the workbook. The link to the notebook is stored in your browser storage, so it is available to import into any workbook. If you update the code in the Gist, you can select the notebook and click the Import Notebook Functions button again to update the functions in the workbook, which will overwrite any changes you made in the editor. This is the workflow we use when building functions using VS Code.

Writing Code

Some things to be aware of when writing your Python code are outlined in the following sections.

Importing Packages

Pyodide is the Python runtime used by the add-in, and includes a number of built-in packages. You can import any of these packages as well as those from the Python standard library. Any imports for external Python packages will be loaded from PyPI, but only if they are pure Python, and depend on any packages that are either built into pyodide or also pure Python. Packages tagged as OS-independent on PyPI should work. If you try to import an external package (not part of the Python standard library or one of the built-in packages) for which there is not a pure Python wheel available on PyPI, an error will be thrown

Your code will be scanned for imports and any packages needed will be installed for you using micropip. However, specific imports (e.g., from azure.core.credentials import AzureKeyCredential) will not be handled automatically, so you need to install these manually using await micropip.install(['package1', 'package2']). micropip has already been imported for you, and since the Python code is executed async, you can use a top-level await as follows:

await micropip.install(['azure-ai-textanalytics'])
from azure.core.credentials import AzureKeyCredential
# Continue with your code...

Type Conversion

The following type conversions will take place on the arguments passed to your function from Excel:

*Excel stores dates as numbers in serial format, and since we have no way to distinguish these from non-date numbers, they are not converted to datetime objects, and simply become a Python int. If you want to convert an Excel serial to a Python datetime, you can use the following code:

from datetime import datetime, timedelta

def excel_date_to_datetime(serial):
    return datetime(1899, 12, 30) + timedelta(days=serial)

The value returned by your Python function will similarly be converted to the corresponding Excel type as follows:

*Assumes formula is in cell A1.

If your function returns another Python type such as a dict, tuple, etc., an error will be thrown. We have support for converting numpy and pandas types to help reduce errors, but recommend you not rely on these.

Test Cases

If you define a test_cases variable in your code with a list of arguments, these will be used to test your function when you click Test in the editor. You will be taken to the Output tab where you view the output from executing the function with the arguments provided in the test_cases. Note that the arguments need to be in the same order as the function arguments and are the Python type expected by the function. These test_cases run entirely in the Python environment so the Excel-to-Python type conversions noted above do not apply.

If you include a comment line in your code with an example invocation of your function in Excel, e.g. # Excel usage: =HELLO("Nancy", "Morgan"), a demo sheet will be created when you test your function which includes this invocation. This demo sheet will be overwritten each time you run your function and currently only one comment line is supported.

For examnple:

def hello(first, last):
    """ Returns a greeting. """
    greeting = f"Hello {first, last}!"
    return greeting

# Test cases for the function.
test_cases = [["Nancy", "Morgan"], ["Ming", "Lee"]]

# Excel usage: =HELLO("Nancy", "Morgan")

If your function only has one argument, you must still wrap it in a list as follows:

def square(x):
    """ Returns the square of a number. """
    return x ** 2

# Test cases for the function.
test_cases = [[2], [3], [4]]

# Excel usage: =SQUARE(2)

If you have a function that takes an array as an argument, you can define the test cases as follows:

def sum_array(arr):
    """
    Returns the sum of the first sub-array in a 2D list of integers.

    Parameters:
    arr (list of list of int): A 2D list of integers.

    Returns:
    list of list of int: A 2D list containing the sum of the first sub-array.
    """
    return sum(arr[0])

# Test cases for the function.
test_cases = [[[1, 2, 3]], [[4, 5, 6]]]

# Excel usage: =SUM_ARRAY({1, 2, 3})

As mentioned above in the Type Conversion section, Excel arrays will always be converted to 2D lists, so construct your function and test_cases accordingly.

Limitations

• Optional arguments are not supported, e.g., def add(a, b=2): or ADD(a,[b]) in Excel. This will be fixed soon.
• *args and **kwargs are not supported because LAMBDA functions do not support repeating arguments.

BOARDFLARE.RUNPY

BOARDFLARE.RUNPY is a legacy function that can still be used, but for most scenarios the code editor and automatically generated LAMBDA functions are the preferred way to work with Python code in Excel.

RUNPY takes a Python code string and a repeating positional argument arg1, arg2, ... (similar to Python *args) and returns the result. The syntax is as follows:

=BOARDFLARE.RUNPY(code, [arg1],[arg2],...)

=BOARDFLARE.RUNPY("2 + arg1", 3) = 5

The value of the last expression is returned. For example:

import numpy as np

def add(a, b):
    return np.add(a, b).item()  # Call item() to convert numpy scalar to Python scalar.

add(arg1, arg2)  # This value of this expression will be returned.

The arguments and return values undergo the type conversion noted earlier, with a key difference that array arguments are converted to pandas DataFrames first.

See this brief video and example workbook for more examples.
